This page applies to Mode B and Mode C integrations. Mode A involves no API, so none of it applies there.

​
Common interface info

The API response indicates whether the request was processed successfully through the HTTP status code:
HTTP 200 does not mean business success. It only means the transport worked — the request arrived, was accepted, and a response came back. The actual business outcome needs two more checks:
  1. The code in the response body — only 0 means the request was accepted; handle everything else per the error codes.
  2. The business status field inside data, such as status or fulfillmentStatus.
For example, a failed fulfillment is also returned as HTTP 200 with code 0; the failure shows up as fulfillmentStatus PAY_SUCCESS_SUPPLY_FAILED plus failureCode and failureReason. Reading only the HTTP status code would misread it as a success.

​
API message structure

Request and response messages are JSON, UTF-8 encoded, and consist of a header and a body. Distributor (Waffo Point Topup) request to the supplier:
Here X-SIGNATURE is Waffo Point Topup’s signature over the whole body message, made with its own private key. Supplier response:
Here X-SIGNATURE is the supplier’s signature over the whole body message, made with its own private key. If the request fails, data is empty.

​
API security

Transaction signing and verification ensure non-repudiation of the messages between Waffo Point Topup and the supplier. The signature algorithm is SHA256WithRSA.
1

Supplier onboarding stage

Waffo and the supplier exchange RSA public keys. Each party keeps its own RSA private key and shares only the public key.
2

API request stage

Waffo signs the message with its RSA private key and sends it to the supplier. The supplier verifies it with Waffo’s public key: if verification passes, the supplier processes the request; if it fails, the supplier responds with an Invalid Signature error.
3

API response stage

The supplier signs the response with its RSA private key and returns it to Waffo. Waffo verifies it with the supplier’s public key: if verification passes, Waffo processes the response.If verification fails, Waffo investigates and contacts the supplier, and stops sending new transactions to that supplier until the issue is resolved. The supplier may have already processed the request while Waffo failed to process the response because of the verification failure.

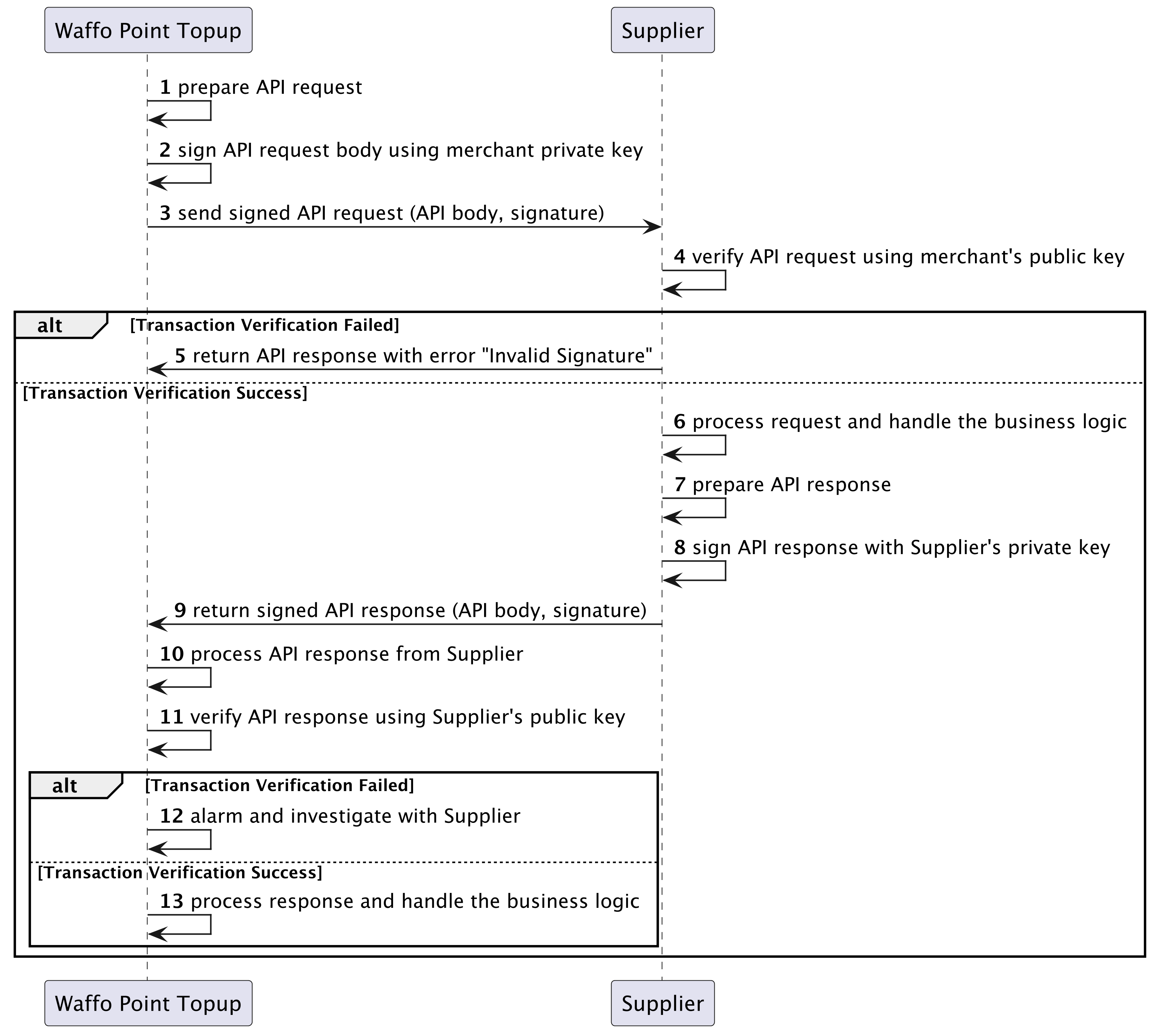

SHA256WithRSA signing and verification flow between Waffo Point Topup and the supplier

​
Error codes

Error code prefixes:
When you receive E0001 unknown status, do not treat the transaction as failed. Keep querying until you get a definitive success or failure state.

​
Generate an RSA key

Use openssl to generate an RSA key pair.
1

Install openssl

Download and install openssl from openssl.org/source.
2

Generate the key pair

3

Exchange public keys

Hand supplier_public_key.pem to Waffo, and obtain Waffo’s public key in return.
The private key must be kept secure and never disclosed to any third party.

​
Next steps

Mode B: point code retrieval API

Request and response fields plus the idempotency requirement for real-time retrieval.

Mode C: direct fulfillment API

Signed URL redirect, direct fulfillment, and fulfillment inquiry.
